The Olo integration is available on the Enterprise plan.
Radar can track customer pickups for orders placed through Olo. The integration includes optional capabilities to fire orders based on live location updates and send approaching and arrival alerts to Olo Expo.

​
Configuration

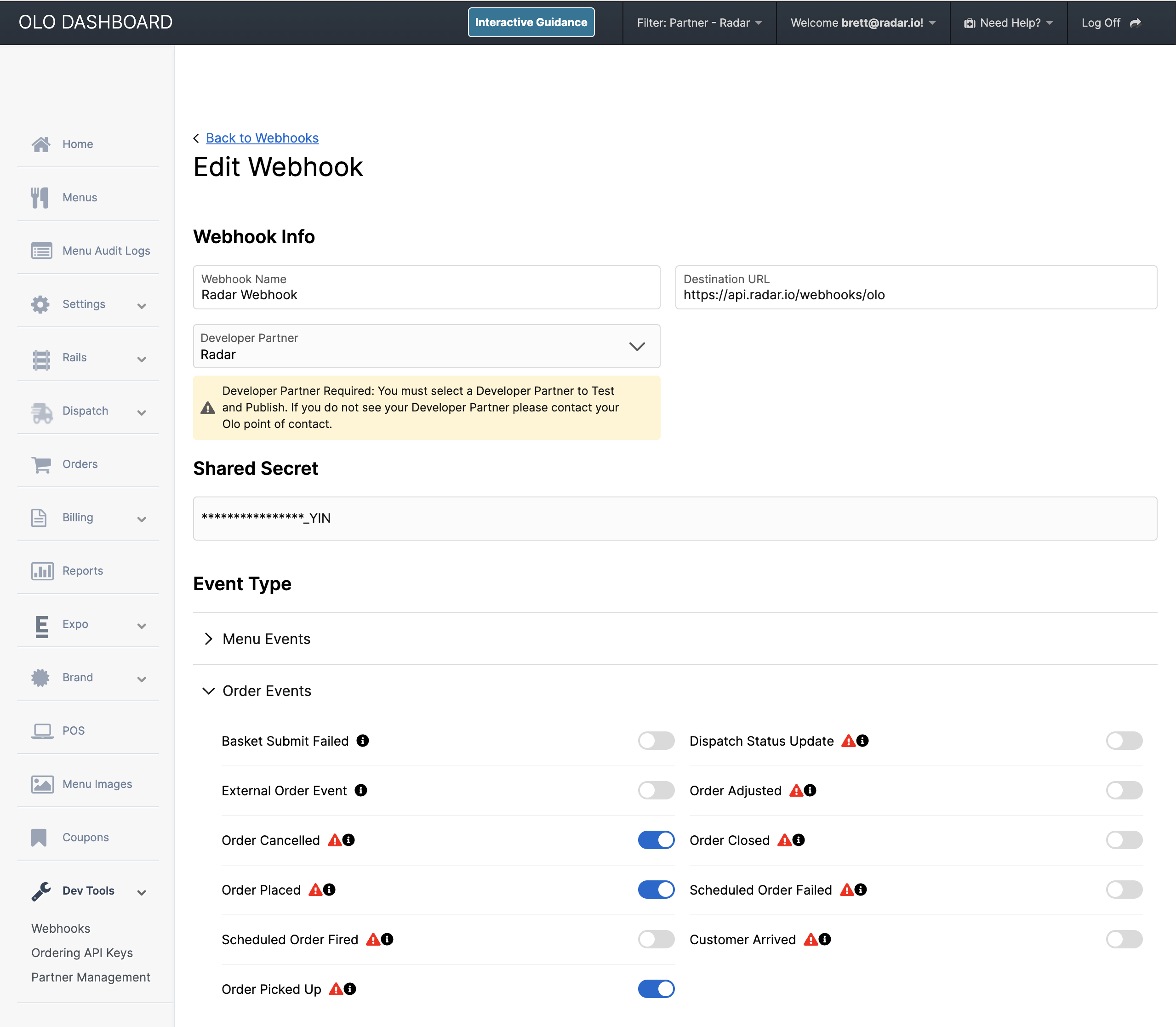

Configure an Olo webhook to deliver order events to https://api.radar.io/webhooks/olo via the Development Tools section of the Olo Dashboard (requires two-factor authentication and at least Brand Manager permission). Under the Order Events section, enable Order Placed and Order Cancelled. If leveraging Olo Expo, enable the Order Picked Up event as well. Once the webhook is setup, your Radar account team will setup the configuration on the Integrations page. Applicable Olo Handoff modes, a destination geofence tag (e.g., restaurant), and custom field mappings from the Olo webhook body to Radar trip metadata will be set. Finally, on the Radar Geofences page, import geofences for your restaurants. Use the tag from the Olo integration configuration for the geofence tag attribute. Olo Webhook Configuration Pn Radar will automatically create trips when new orders are placed, as well as complete or cancel trips when orders are completed or cancelled in Olo. Call Radar.startTrip(tripOptions, trackingOptions) with tripOptions.externalId set to the Olo order ID to start the Radar trip and enable tracking. The mapping below will be used between the Olo webhook and a Radar trip:
Olo webhook fieldRadar trip attribute
orderIdTrip external id
storeNumberTrip destination
timeReady - timePlacedTrip approaching threshold*
timeReadyTrip scheduled arrival at*
*Requires enabling the associated auto-calculate order firing setting Assuming locations permissions have been granted and location tracking has been started in your app, Radar will calculate live ETAs to the restaurant and generate user.updated_trip, user.approaching_trip_destination, and user.arrived_at_trip_destination events. Learn more about Trip Tracking.

​
Order firing

Radar can fire orders in Olo based on customer location rather than a preset time to ensure food preparation time aligns with customer arrival. Orders in Olo will need to set a timewanted for advance orders, or alternatively, set the externalRef to any value that starts with radar_ (i.e. radar_h87y12rgb). Additionally, configure Radar with a Partnership Type of Customer Arrival via the Partner Management section of the Olo Dashboard. Select stores in the configuration where order firing will be enabled. Upon completion, reach out to your Radar account team to complete the order firing integration. When starting a trip for an order, include the oloOrderGuid and oloHandoffMode in trip metadata. The trip’s approaching threshold and scheduled arrival at attributes are used to determine the order firing time. When an active trip ETA drops below the approaching threshold, Radar generates a user.approaching_trip_destination event and Radar will fire the order. If the trip is started inside the destination geofence, Radar will fire the order immediately. In the event the scheduledArrivalAt set on the trip is reached before the approaching threshold is crossed, the order will automatically fire. See below for how to configure these two parameters.

​
Scheduled arrival at

A scheduledArrivalAt datetime is required as a fallback in the event location sharing is disabled or the device is experiencing connectivity issues. You can enable auto-calculation of the scheduledArrivalAt, which is initially set to the timeReady value from the Olo Order Placed webhook and then continues to update based on each trip ETA calculation. This includes a backup fire delay setting which is a maximum number of minutes to push back the initial scheduled arrival at. This can be configured in Trips Settings. As an alternative to Radar’s automatic calculation, manually set the scheduledArrivalAt either via Radar.startTrip() in the app, Radar.updateTrip() in the app or the Trips API server-side. Setting this manually will override use of Radar’s auto-calculated scheduledArrivalAt setting.

​
Approaching threshold

In the Radar Trips Settings, set the Approaching threshold (minutes) value as the default number of minutes away from arriving that the order should automatically be fired to Olo. You can enable Radar to auto-calculate the approaching threshold for ASAP orders, which is initially set to the time difference between timeReady and timePlaced from the Olo Order Placed webhook. As an alternative to Radar’s automatic calculation, set the approaching threshold either at the store level via the tripApproachingThreshold property in the geofences API or at the order level via Radar.updateTrip() in the app or Trips API server-side.

​
Multiple order support

Sometimes, multiple orders are placed to the same store. To ensure that all orders receive real-time ETAs and are processed simultaneously, Radar automatically combines additional orders into an existing trip if they are headed to the same destination and the expected arrival time is within an hour. For scheduled orders, the scheduledArrivalAt parameter included with Radar.startTrip() is used to verify the timing. If this parameter is not provided, we assume the order is an ASAP order and use the current time instead.

​
Expo notifications

Radar is a Customer Arrival Olo partner and can automatically provide Approaching and Arrival status updates to Olo Expo based on Radar trip tracking events. This keeps in-store teams up-to-date with real-time status updates on tracked mobile orders. Additionally, if your team utilizes the Picked Up button in Olo Expo, this will automatically complete the Radar trip and capture completion time for trip duration and wait time analytics. Configure Radar as a Customer Arrival Partnership Type via the Partner Management section of the Olo Dashboard if this was not completed to enable order firing. Select stores in the configuration where order firing will be enabled. Upon completion, reach out to your Radar account team to complete the order firing integration. Finally, on the Integrations page under Olo, you will need to set Expo updates enabled to Yes, and save your integration settings.
